Kirk

Type Transfer Panel Interlock

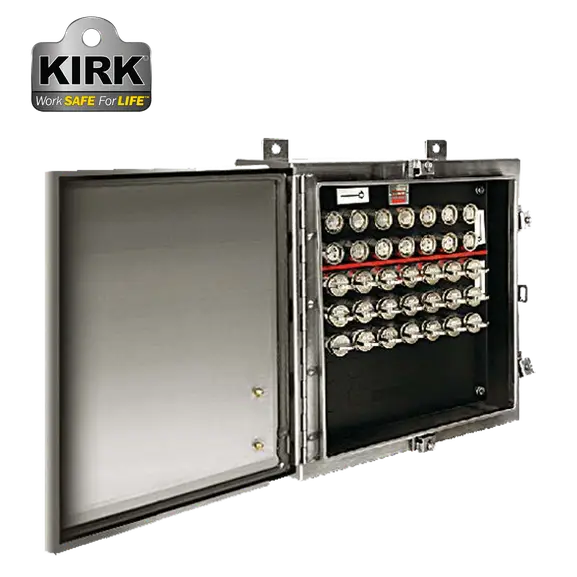

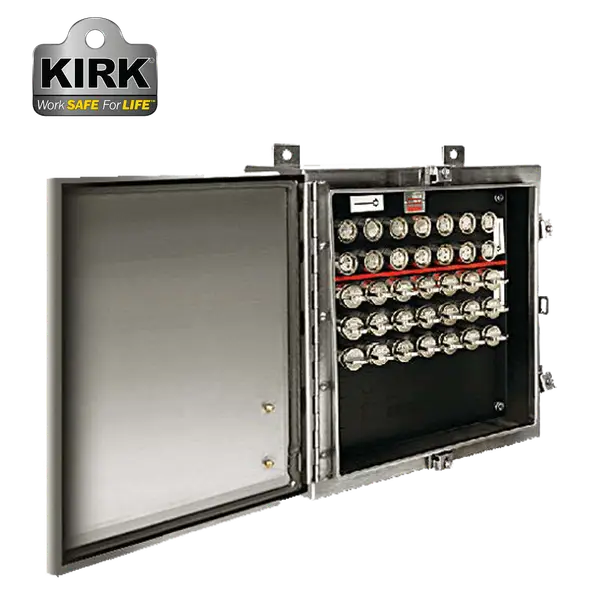

KIRK® Transfer Panel interlock is an assembly of eight or more lock cylinders in a single panel. The Transfer Panel is designed to retain one or more key(s), trapped key(s) or secondary key(s), while the remaining keys, initiating key(s) or primary key(s), are removed. This allows for the exchange of eight or more interlocks within an interlock sequence.

KIRK® Transfer Panels are manufactured with a NEMA 4 or NEMA 4X enclosure ensuring the cylinders and mechanical linkages are protected from harsh industrial or outside elements.

Transfer Panels are available in both SD and HD series.

For further technical information please refer to the datasheet.

Type Transfer Panel Interlock Data Sheet

2 MB

Link copied to clipboard

https://www.sentricsafetygroup.com/us/wp-content/uploads/sites/2/2022/11/Transfer_Panel_Kirk_10_22.pdf
